Applying AstroLink to Image Data (a JWST toy example)

This notebook demonstrates how one might apply AstroLink – which is designed for point-cloud data – to image data. Here, we use a toy example based on the JWST Deep Field image, however the general idea can be extrapolated to any image with some number of colour channels.

We’ll:

  1. Load an image and interpret it as a luminosity map.

  2. Sample points from the image proportionally to its luminosity.

  3. Represent sampled points as a point-cloud with colour channels.

  4. Apply AstroLink to identify coherent structures.

  5. Visualize the results and the steps taken.

[!NOTE] This is an experimental application setting, but it allows for image-based structure-finding in a model-agnostic way.

Obligatory imports…

[16]:
import numpy as np
import matplotlib.pyplot as plt
from astrolink import AstroLink

1. Load the Image

We load a JWST Deep Field image (Webb_Deep_Field.tif) as a NumPy array. Each pixel has RGB values that we’ll later use for sampling and visualization.

[17]:
I = plt.imread('../data/Webb_Deep_Field.tif')

2. Generate a Point Cloud from the Image

We convert the image into a point-cloud where each sampled point represents a pixel location and its color. Here, sampling is performed proportionally to pixel luminosity, emphasizing brighter regions.

To summarise, we;

  • Subtract background luminosity.

  • Normalize and compute the cumulative distribution function (CDF).

  • Randomly sample pixels according to their relative brightness.

[18]:
# Sample proportional to luminosity
n_samples = 10**6  # Number of samples
lum = np.linalg.norm(I, axis=-1)
lum = np.maximum(lum - 50 * np.sqrt(3), 0)  # Subtract background
lum /= lum.max()  # Normalize

# CDF-based sampling
cdf = np.cumsum(lum)
cdf /= cdf[-1]
cdf_sampling = np.random.uniform(0, 1, n_samples)
pixel_idx = cdf.searchsorted(cdf_sampling).reshape(-1, 1).astype(np.float64)

# Recover pixel coordinates
x, y = pixel_idx % I.shape[1], pixel_idx // I.shape[1]
pixel_colours = I.reshape(-1, I.shape[-1])
P = np.concatenate((x, y, pixel_colours[pixel_idx.astype(np.int64).ravel()]), axis=-1)
P += 0.5 # Centered the points in the pixel
P += np.random.uniform(-0.5, 0.5, P.shape) # Add random uniform noise to randomly distribute the points in their respective pixels and within the integer colour values
P[:, 2:] *= 255 / 266  # Adjust colour scale to ensure its contained within [0, 1] for plotting

3. Apply AstroLink

We now apply AstroLink to the sampled point-cloud to find coherent structures.

  • k_den = 50: number of neighbors for density estimation.

  • adaptive = 0: disables unit variance rescaling.

  • S = 5: clusters will be \(5\sigma\) outliers from the noisy density fluctuations in the sampled point-cloud.

[19]:
c = AstroLink(P, k_den=50, adaptive=0, S=5)
c.run()

4. Visualize Results

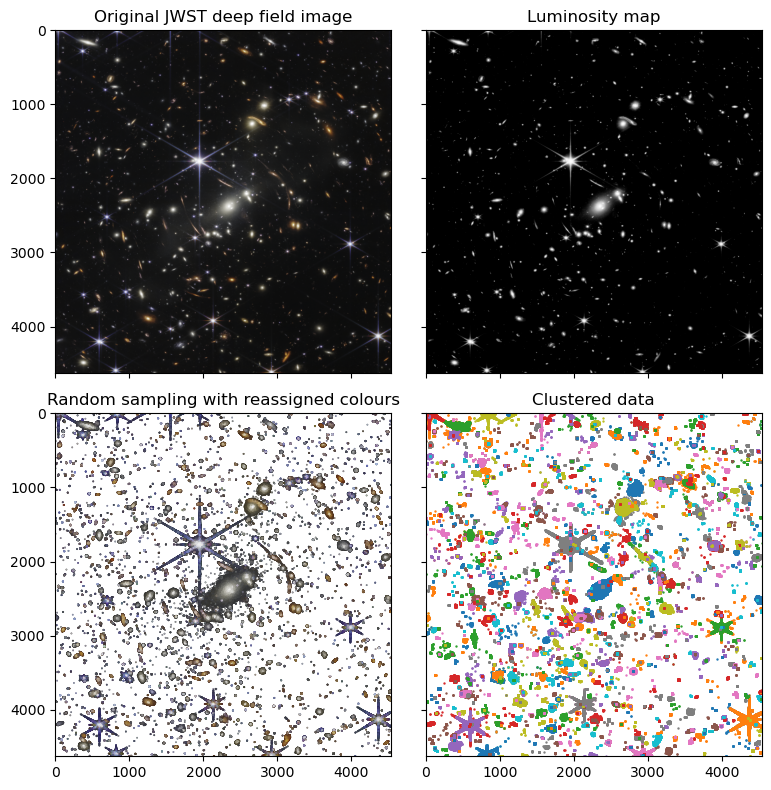

To visualize the results (and this entire process), we create a 2×2 grid of plots showing the:

  1. Original image

  2. Luminosity map

  3. Random sampling with reassigned colours

  4. Clustered data (in distinct colours)

[20]:
fig, axs = plt.subplots(2, 2, figsize=(8, 8), sharex=True, sharey=True)

# Original image
axs[0, 0].imshow(I)
axs[0, 0].set_title('Original JWST deep field image')
axs[0, 0].set_aspect('equal')

# Luminosity map
axs[0, 1].imshow(lum, cmap='Greys_r')
axs[0, 1].set_title('Luminosity map')
axs[0, 1].set_aspect('equal')

# Randomly sampled points
axs[1, 0].scatter(P[:, 0], P[:, 1], c=P[:, 2:]/255, s=0.1)
axs[1, 0].set_title('Random sampling with reassigned colours')
axs[1, 0].set_aspect('equal')

# Clustered data
colours = [f"C{i}" for i in range(10)]
for i, (start, end) in enumerate(c.clusters[1:]):
    clustered_points = P[c.ordering[start:end]][:, :2]
    axs[1, 1].scatter(clustered_points[:, 0], clustered_points[:, 1], c=colours[i % 10], s=0.5)
axs[1, 1].set_title('Clustered data')
axs[1, 1].set_aspect('equal')

# Consistent limits
axs[0, 0].set(xlim=(0, I.shape[1]), ylim=(I.shape[0], 0))

plt.tight_layout()
plt.show()
_images/image_demo_12_0.png

Summary

This notebook demonstrated how to adapt AstroLink, originally developed for astronomical point-cloud data, to image data. By interpreting pixel intensities as a probability distribution for sampling, we can uncover latent spatial and structural patterns in images.


This process can be improved, some next steps could be:

  • Try varying the number of points sampled from the image (\(n=10^6\) is very small compared to the number of pixels ~\(2\times10^7\)).

  • Try varying the background cutoff.

  • Construct the point-cloud sample more smoothly, ensuring continuity despite pixel-boundaries and colour-discreteness to avoid sharp pixel-edge effects.

  • Apply a meaningful relative rescaling of the position-space to the colour-space for improved structure identification.

  • Try varying k_den or S to see how cluster granularity changes.

  • Try keeping only the background, instead of removing it, to see find faint structures.

  • Apply the same technique to real astronomical images or multi-band data :)
